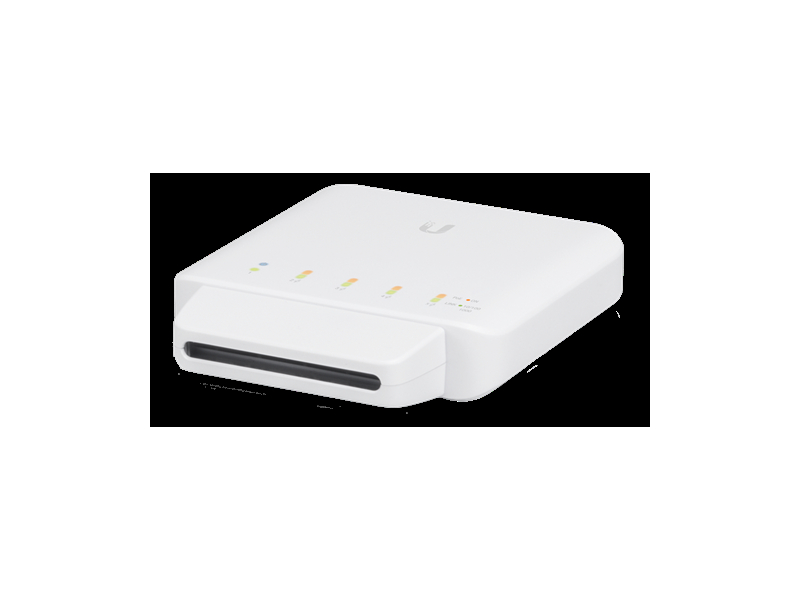

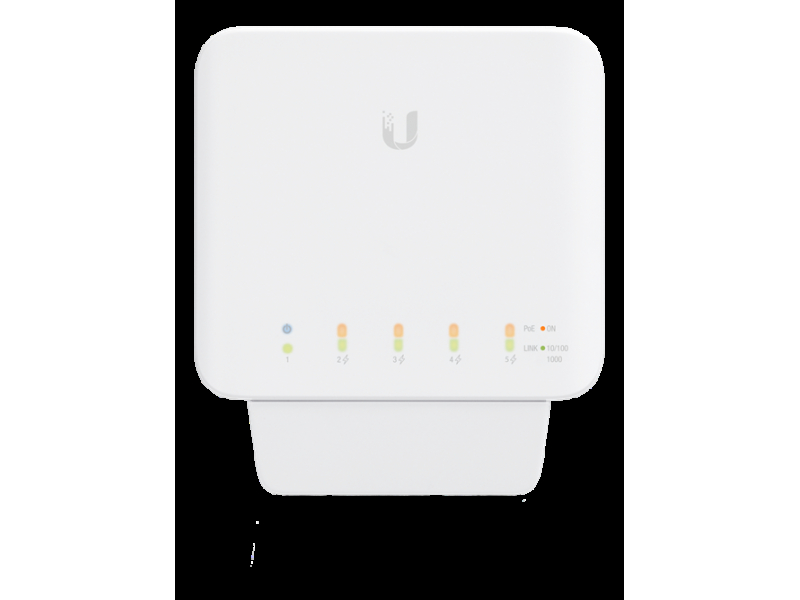

UnifiSwitch Flex 5 GE 802.3af PoE support L2 UBI-USW-FLEX

Ubiquiti USW-Flex UniFi switch 5-ports, white

Build and expand your network with UniFi Switch, USW-Flex is a configurable layer 2 Gigabit switch with automatic 802.3af PoE detection. it offers 5 RJ45 Gigabit Ethernet ports, 1 PoE input and 4 PoE outputs to your devices.

The UniFi switch comes with a PoE input port for power and four other PoE ports to provide up to 15W PoE output power to supply power to a UniFi access point or to other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE and USW-Industri switches, sold separately) as a power source, USW-Flex supports a maximum of 46W PoE output power. USW-Flex has a weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi Controller or the UniFi Mobil app, UniFi switch flex offers basic layer 2 switching protocols and functions. The UniFi controller and mobile app allow administrators to configure and monitor virtually any feature with a graphical user interface from anywhere.

• PoE Flexibility
• Versatile mounting
• indoor / outdoor use
• seamless integration

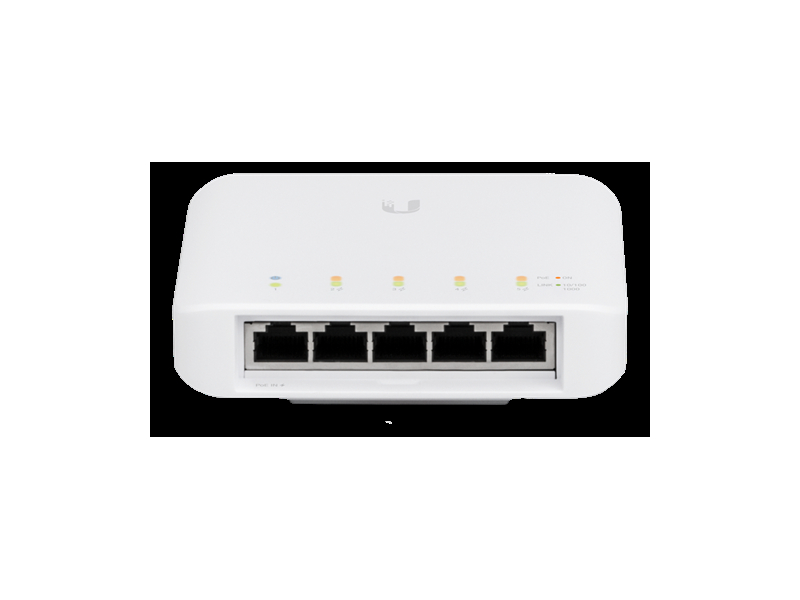

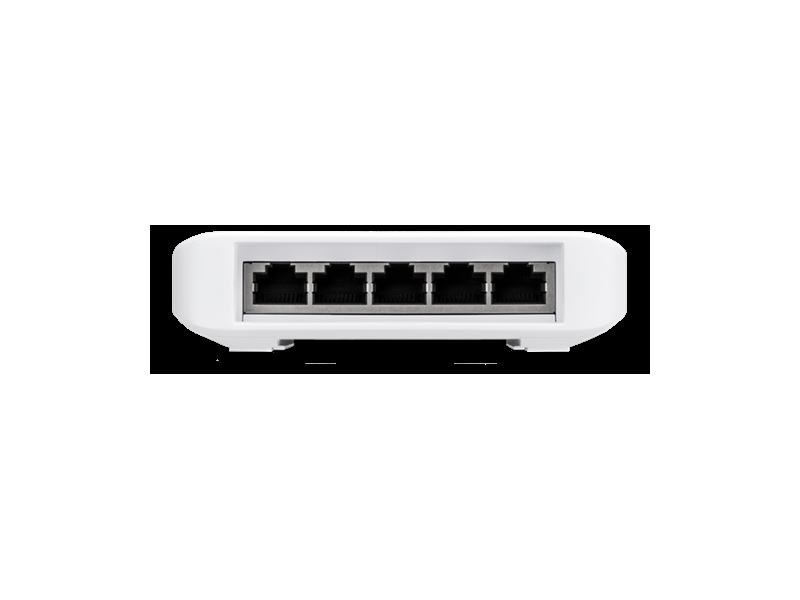

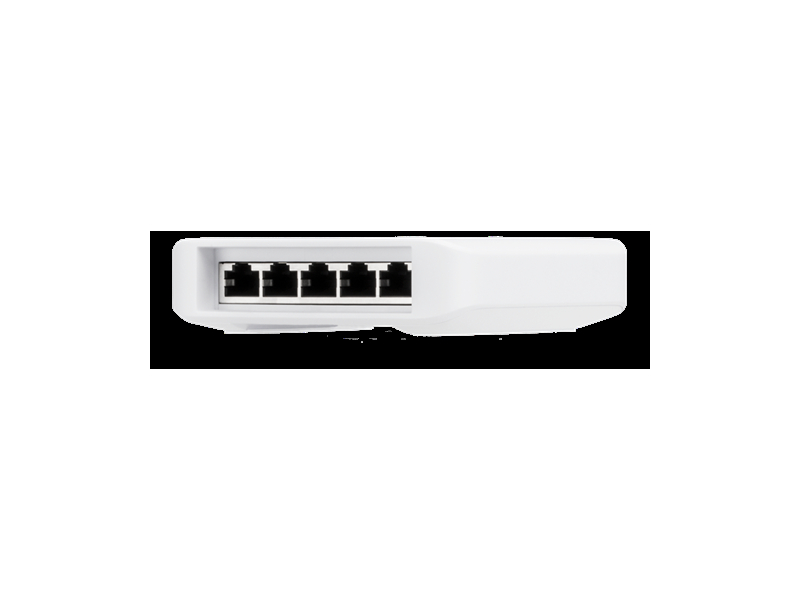

• 5 RJ45 Gigabit Ethernet ports
• Auto-detection 802.3af PoE

Dimensions: (LxWxH) 122.5x107.1x28 mm

Weight: 230 g

Width    12.25 cm
Depth    2.8 cm
Energy consumption during operation    5 watts
Features    Automatic sensing per device, VLAN support, auto-uplink (auto MDI / MDI-X), door mirroring, depth inspection, waterproof
Interface    1 x 1000Base-T RJ-45 PoE input
Interface    4 x 1000Base-T RJ-45 PoE - 15 W
Height    10.71 cm
Included accessories    Mounting kit
Humidity during operation    5 - 95% (non-condensing)
Maximum temperature during operation    65 ° C
My operating temperature    -40 ° C

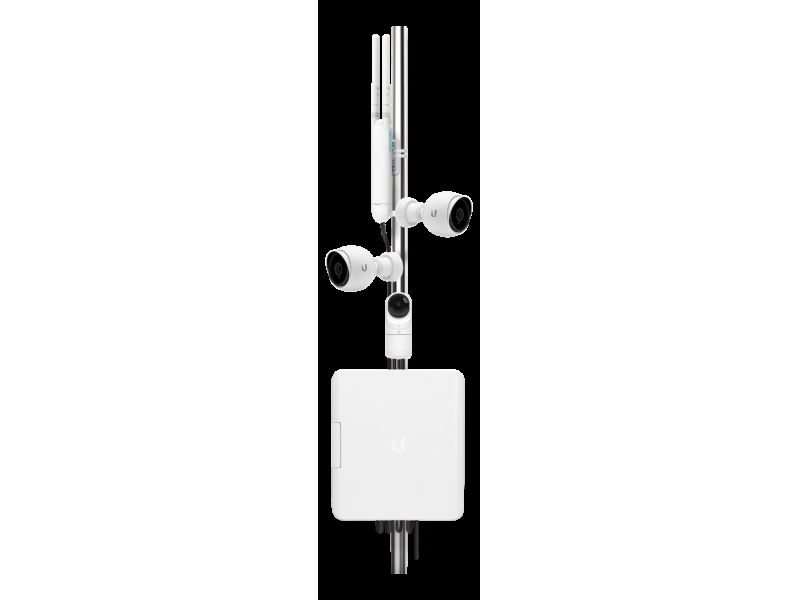

Model    Wall mountable, pole mountable
Operating system required    Apple MacOS, Linux, Microsoft Windows 7/8/10
PoE (Power Over Ethernet)    PoE
PoE budget    46 W
Ports    4 x 10/100/1000 (PoE) + 1 x 10/100/1000 (PoE)
Standards followed    IC, FCC, RoHS, WEEE, Directive 2012/19 / EU, NMB-3 Class B, CAN ICES-3 Class B
Standards followed    IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Status indicators    Status, PoE, link / activity
Type of device    Switch - 5 ports - Administered
Subtype    Gigabit Ethernet
Weight    230 g
